Laser battery series

2
LDA58135 Y
激光组合图

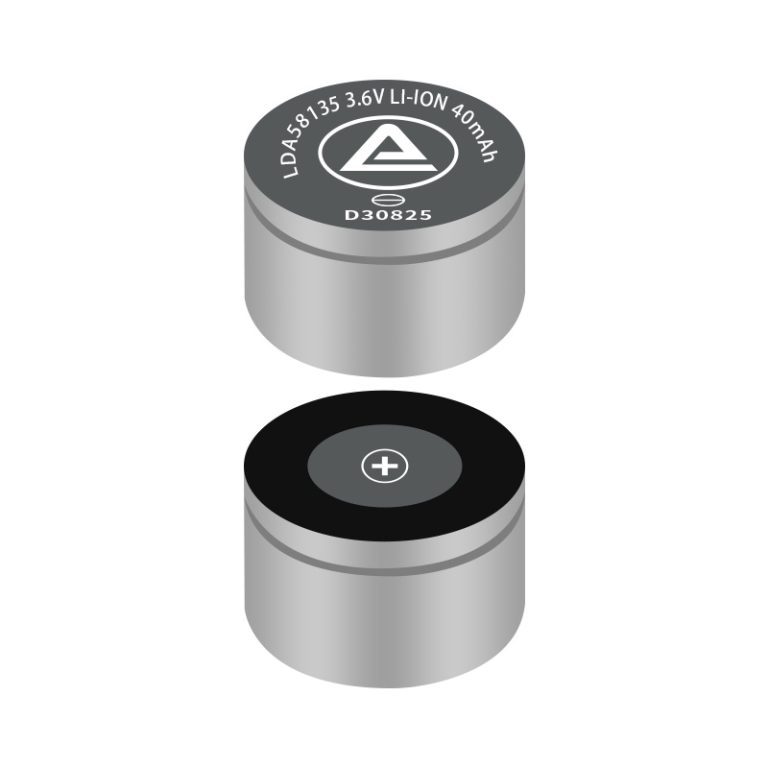

LDA58135

The laser battery series rechargeable lithium-ion button battery is a rechargeable lithium-ion button battery independently developed by Lidion. It has a long battery cycle life, stronger sealing, and a 20 % increase in capacity compared to conventional batteries with the same specifications and volume ! Break the patent restrictions of international giants, achieve more possibilities, and make users more assured.

Inquiry

Basic Parameter

Battery Parameters

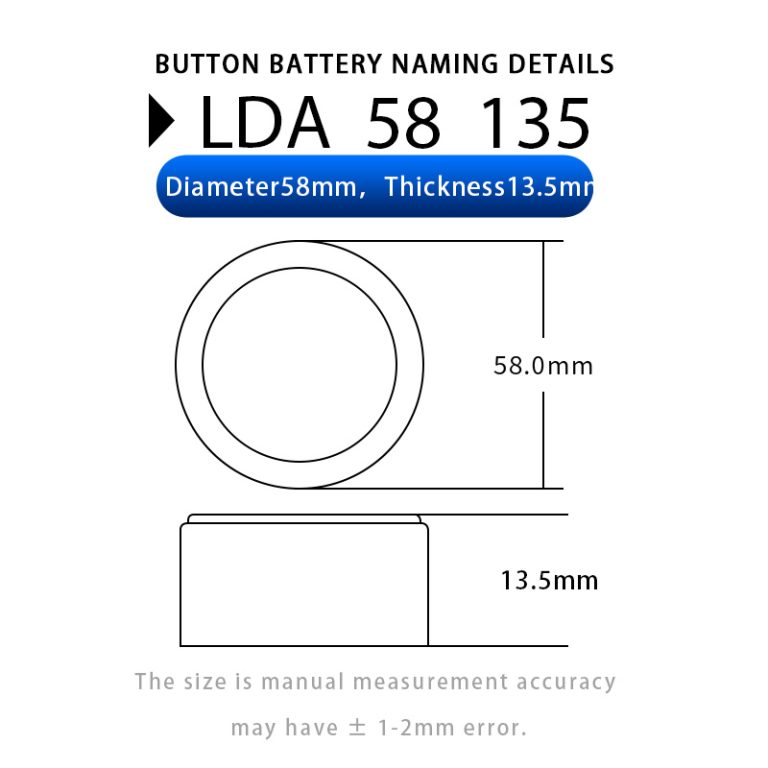

  • Model：LDA58135
  • Weight：2.0 ±0.2 g
  • Diameter：58.0 ±0.1 mm
  • Hight：13.5 ±0.2 mm

Battery Specifications

  • Nominal voltage：3.6v
  • Nominal capacity：40mAh
  • Resistance：≤700 mΩ

Other Parameters

  • Charging with1CmA About 2 hours
  • Cycle life：≥500次
  • Max discharging current：1c
  • Max charging current：3c

Processing programme reference

Welding wire processing
Protection circuit

Want to know more about the battery processing content.

Please click on the button below to learn more, or click on the inquiry to contact us.

Know more
Inquiry

More models in the same series

LDA1054

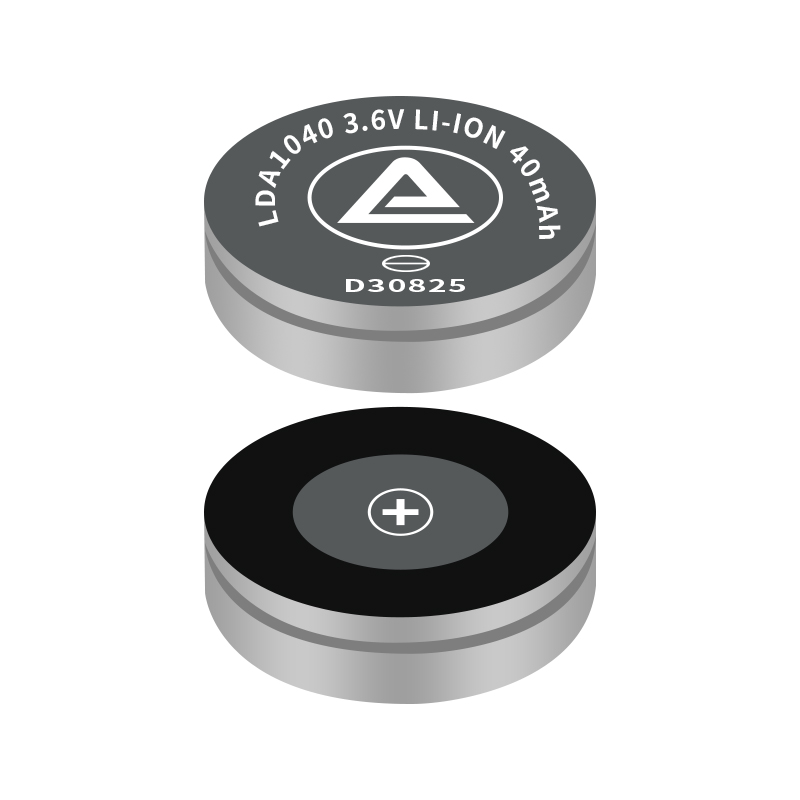

LDA1040
